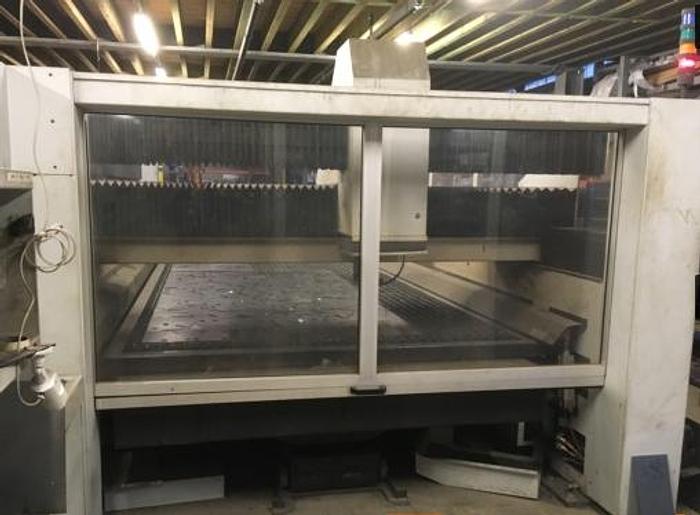

LASER CUTTING - LVD - Fanuc IMPULS 6020 - 07/ 2003 6000 X 2000

LASER CUTTING - LVD - Fanuc IMPULS 6020 - 07/ 2003 6000 X 2000

Contact us for price

Location:Slovenia

orCall +386 51 301 174

Description


CUTTING CAPACITY 4KW

CUTTING PLATES 6000 X 2000


  • Workpiece dimensions6000 x 2000 mm
  • Type of LaserFanuc
  • Power4000 Watt

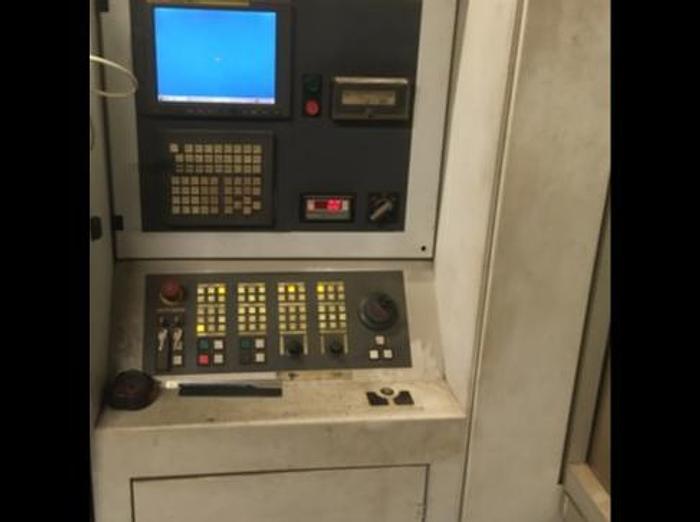

  • ControlFanuc
  • Longitudinal travel X-axis6100 mm
  • Cross travel Y-axis2020 mm
  • Hight travel Z-axis280 mm
  • Travel speed84 m/min
  • Max cuttingthickness in steel20 mm
  • Max cuttingthickness in Inox15 mm
  • Motor Power95 kW
  • Length16 500 mm
  • Depth5300 mm
  • Hight2050 mm
  • Weight26 000 kg

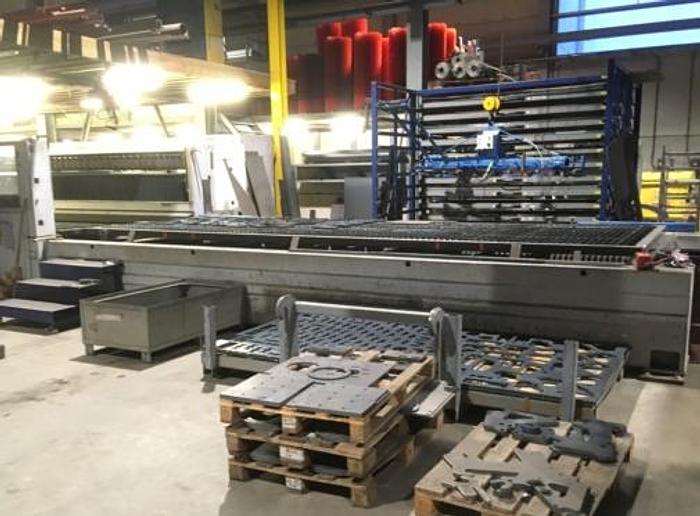

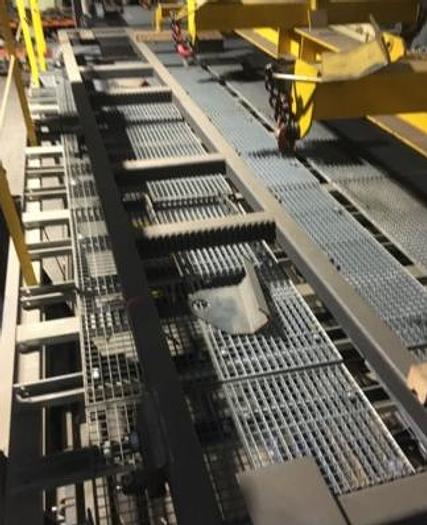

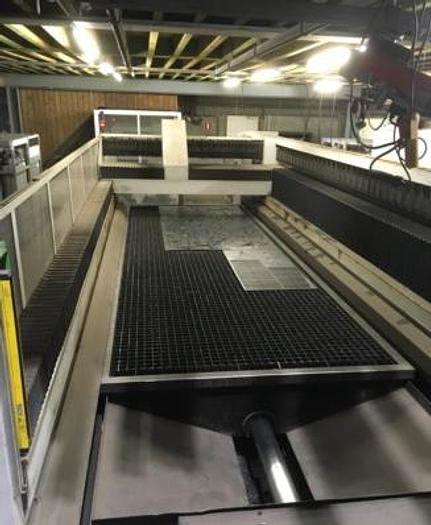

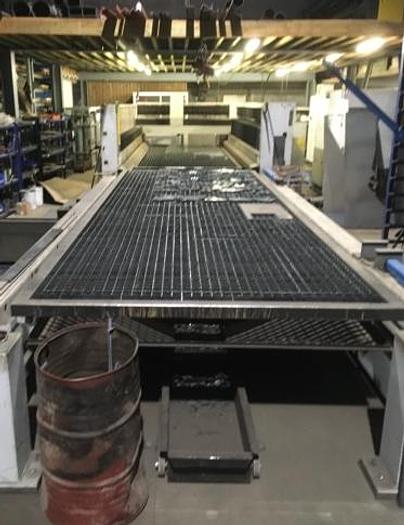

  • Shuttle tableyes




MACHINE WAS COMPLETE OWERHAULED 2 YEARS AGO - SERVIS COST WAS 35000 EUR

LAST SERVICE WAS MADE 6 MONTHS AGO

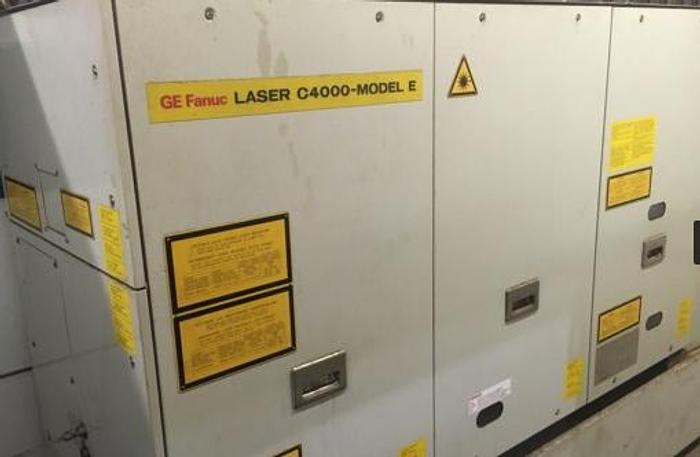

MACHINE IS STILL RUNNING IN THE PRODUCTION TILL FIRST WEEK IN MARCH 2022 WE OFFER MACHINE LOADED ON TRUCK. NEEDS 2 TRUCK FOR TRANSPORT, NORMAL TRUCK FOR CLIENT WE CAN ORGANIZE TRANSPORT AS WELL WE OFFER MACHINE FREE LOADED ON TRUCK. LASER- GE FANUC C4000 - MODEL E


TRANSPORT FOR CUSTOMER WE CAN ORGANIZE AS WELL

Show All

Specifications

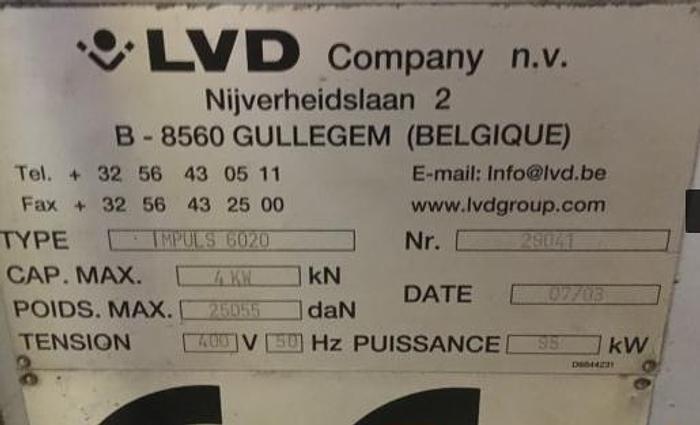

ManufacturerLVD - Fanuc
ModelIMPULS 6020
Year2003
ConditionRefurbished
Stock Number0037
Time of pick up1. ST WEEK IN MARCH 2022
Power4 KW
Cutting dimensions6000 X 2000 - OPTIONAL IS POSSIBLLE TO CUT 6000 mm tubes as well on this machine.
Connection95 KW
