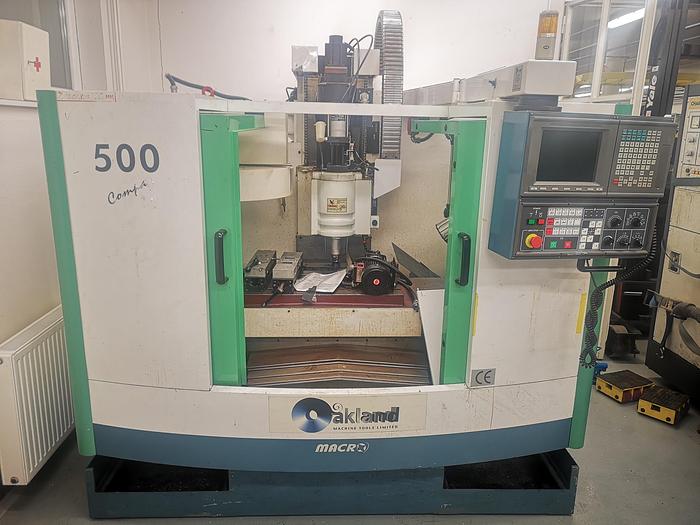

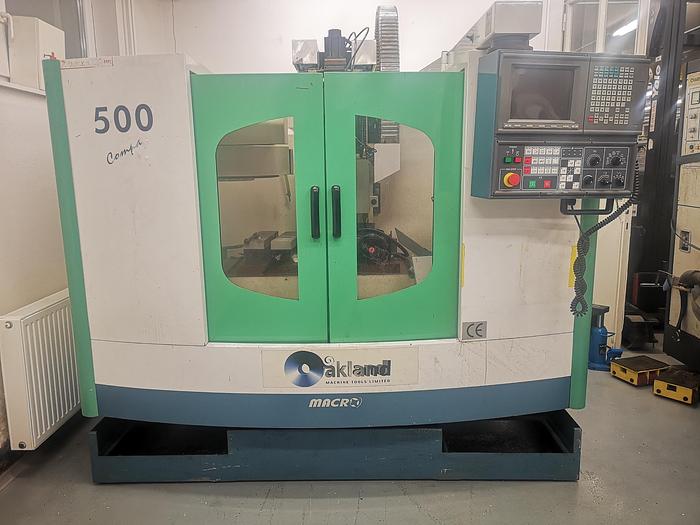

2003 Macro Micro Tech Compac 500 Vertical Machining Center

Machine was brought and stays on place of University.

USED ONLY AS DEMO MACHINE

Condition Used

2003 Macro Micro Tech Compac 500 CNC Vertical Machining Center

Machine was brought and stays on place of University. Not used.

Year: 2003

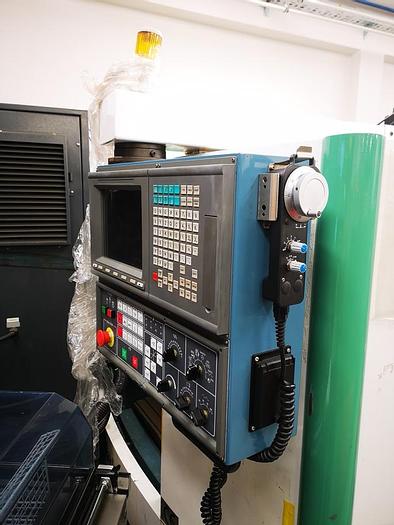

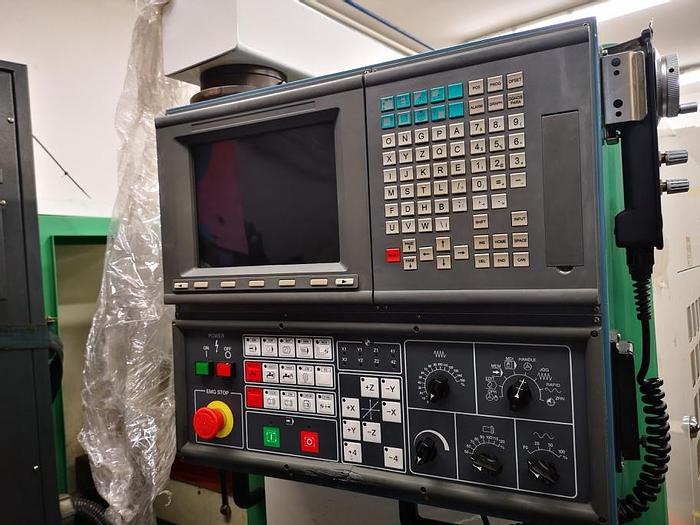

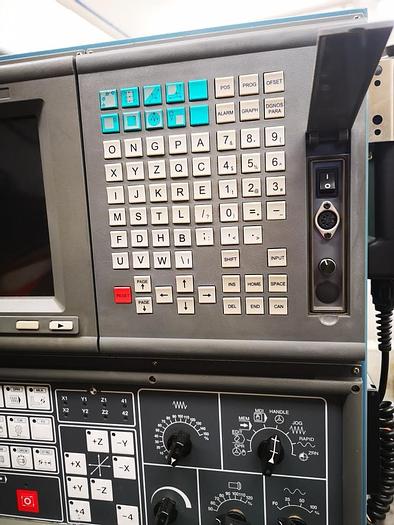

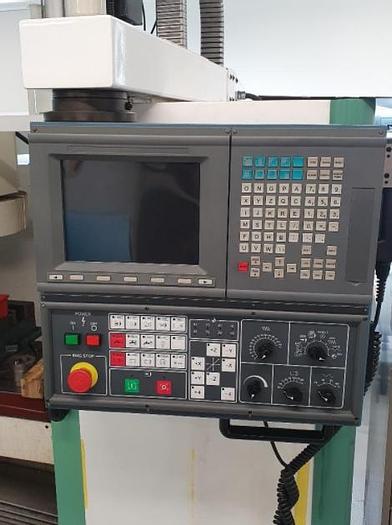

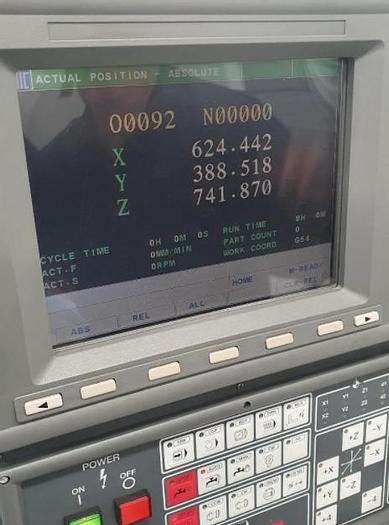

Control: Fanuc Compatible ITRI.MIRL PC Control – Milling 2000 Series

Country of Manufacture: Taiwan

Type: 3 Axis Vertical Machining Center

Technical Specifications

Table Size: 780 x 430mm

X Axis Travel: 510mm

Y Axis Travel: 450mm

Z Axis Travel: 460mm

Spindle Nose to Table: 130 - 590mm

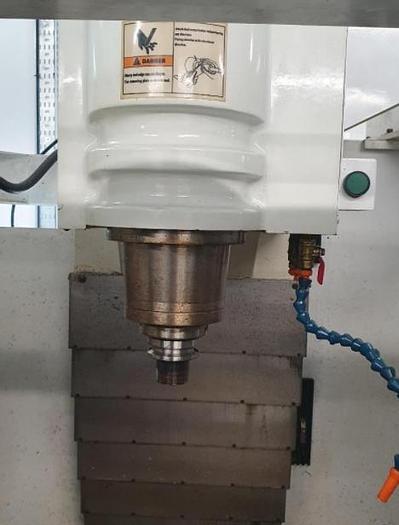

Spindle Speed: 8000rpm

Spindle Taper: BT40

Spindle Motor: 10HP

Specifications

Manufacturer Macro Micro Tech

Model Compac 500 Vertical Machining Center

Year 2003

Condition Used

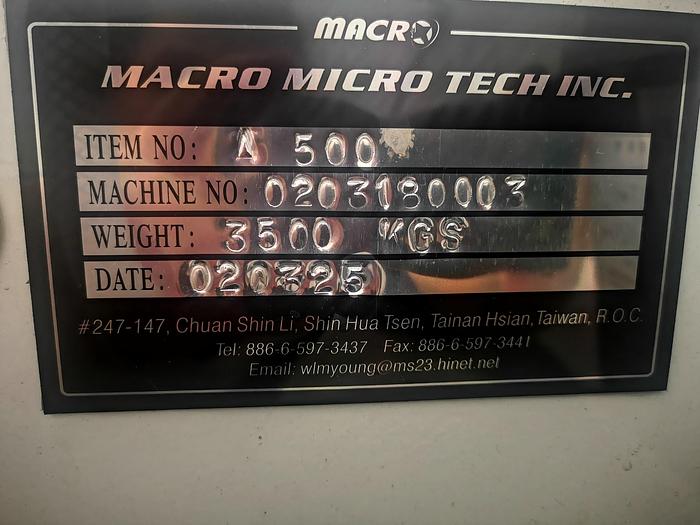

Serial Number 02103180003

Year 2003

Country of Manufacture Taiwan

Table Size 780 x 430mm

X Axis Travel 510mm

Y Axis Travel 450mm

Z Axis Travel 460mm

Spindle Nose to Table 130 - 590mm

Spindle Speed 8000rpm

Spindle Taper BT40

Spindle Motor 10HP

Max Table Load 350kg

Feed Rates - X,Y,Z 10m/min

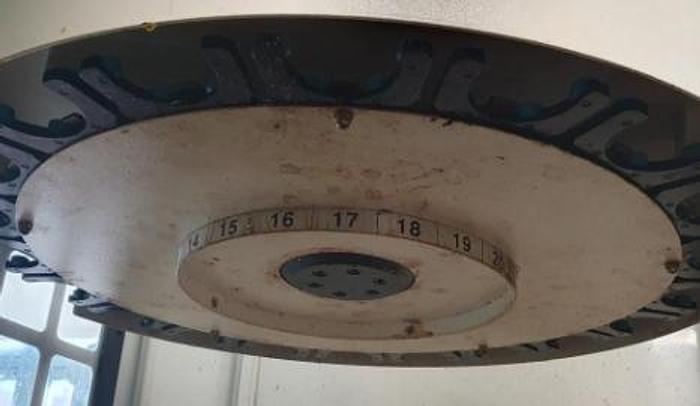

ATC 16 Tool ATC

Max Tool Diameter 80mm

Max Tool Weight 6kg

Max Tool Length 250mm

Rapids (X,Y) 20m/min

Rapids (Z) 16m/min

Machine Dimensions 2,200 x 2,600 x 2150mm

Machine Weight 4,200kg

Power Requirement 12 KVA
