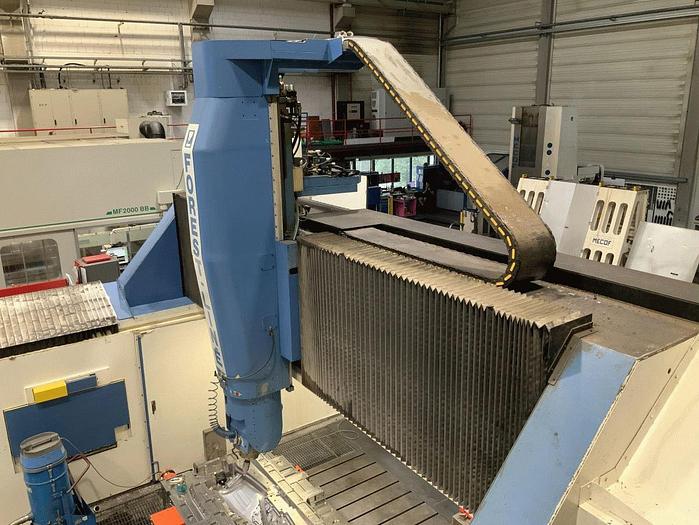

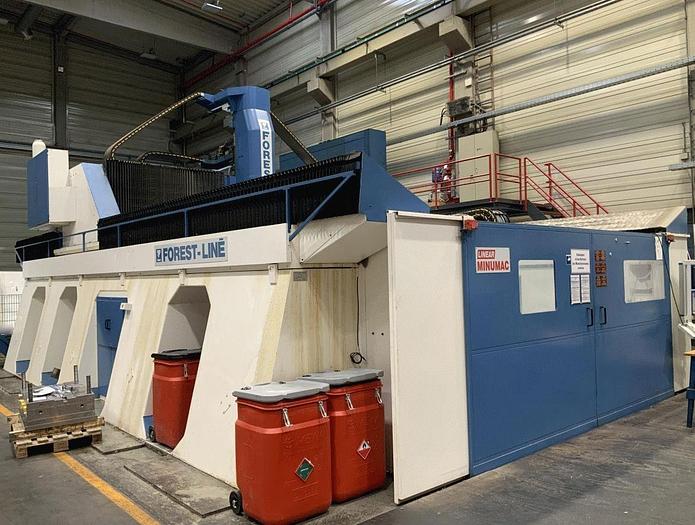

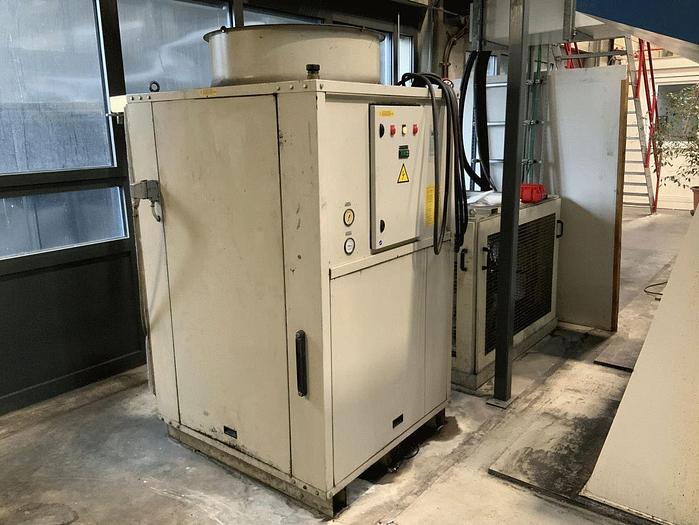

5-Axis CNC High Gantry (Top Gantry) Type Milling Machine

5-Axis CNC High Gantry (Top Gantry) Type Milling Machine

Manufacturer Forest Liné

Model Minumac TH linear

Year 2000

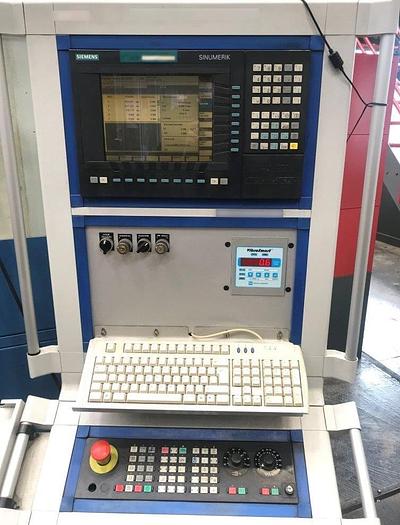

Control Siemens Sinumerik 840D

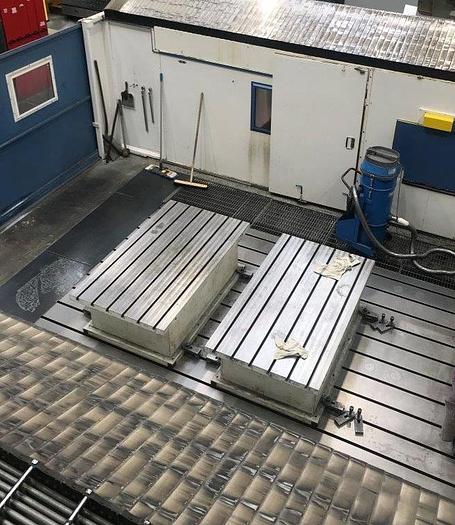

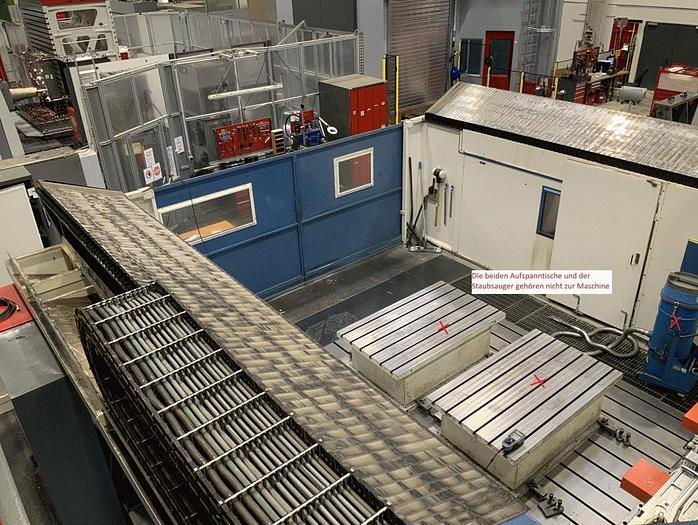

Table size 6000 x 3000 mm

Table load limited by foundation

Distance between the columns

Distance spindle to table

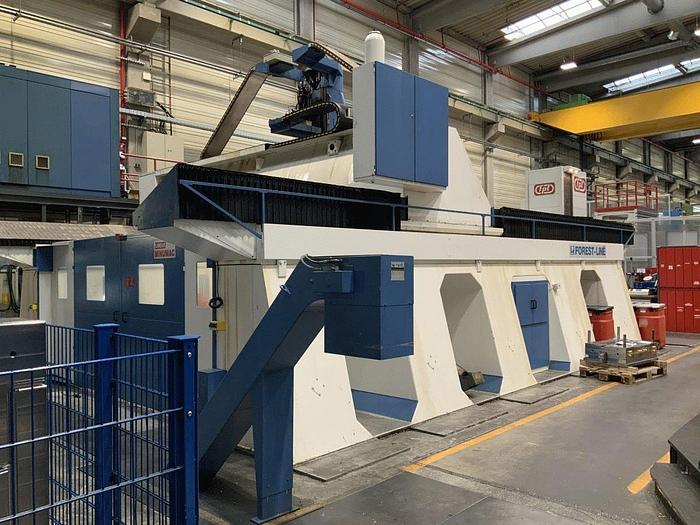

Travels

Top gantry longitudinal X 7000 mm

Milling saddle cross Y 4000 mm

Z 1500mm

Feeds X/Y/Z 0 ~ 20000 mm/min.

C,B 0 ~ 10 rpm

Rapids X/Y/Z 40000 mm/min.

C,B 10 rpm

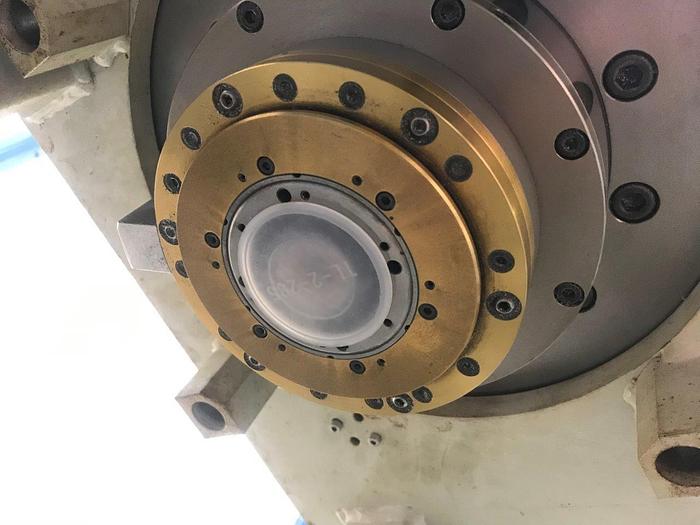

Spindle I

Electro Spindle Fischer MFWS 2603/18 W VCS

Spindle drive motor rating 18/24 KW

Spindle speed max. 18000 rpm

Spindle torque max. 163 Nm

Spindle changer Automatic

Spindle taper HSK-A63

Spindle II

Electro Spindle Fischer MFWS 1709/30/33 HF

Spindle motor rating 20/22 KW

Spindle speed max. 30 000 rpm

Spindle torque max. 23 Nm

Spindle changer Automatic

Spindle taper HSK-A63

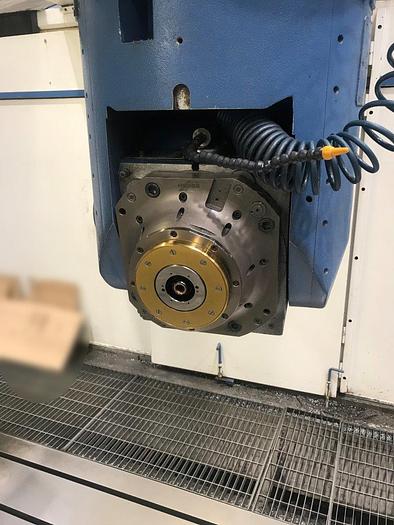

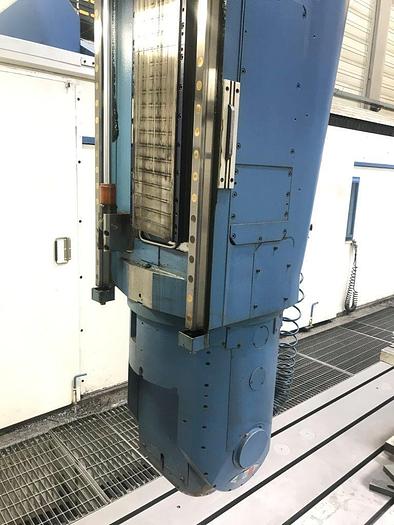

2-Axis NC-Universal Milling Head

Head rotation axis C-Axis +/- 400°

Head tilting axis B-Axis +/- 110°

Spindle taper HSK-A63

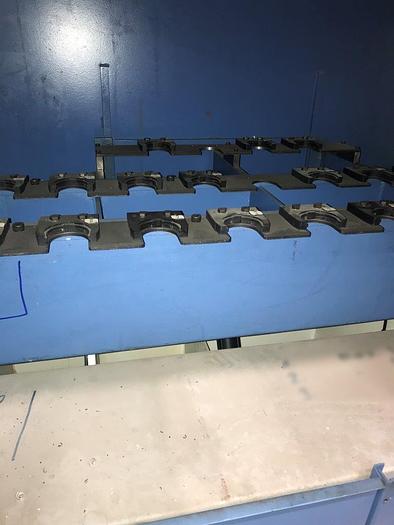

Tool magazine and automatic tool changer

Tool positions 20

Tool diameter max. 100 mm

Tool length max. 250 mm

Tool weight max. 5 kg

Machine weight approx. kg

Machine dimensions l/w/h mm

Equipped with:

Linear motor drives X,Y,Z axes

High accuracy linear scales X,Y,Z Axes

2-Axis NC-Universal Milling Head for full 5-Axis machining

2 x interchangeable High speed spindles – 18000 rpm & 30000 rpm

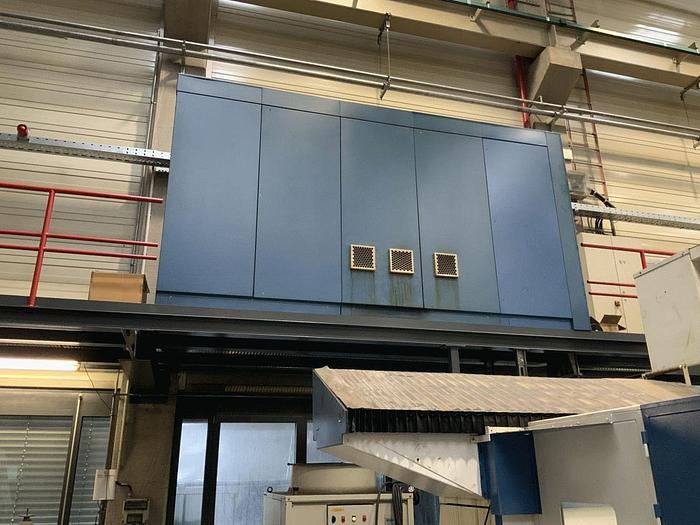

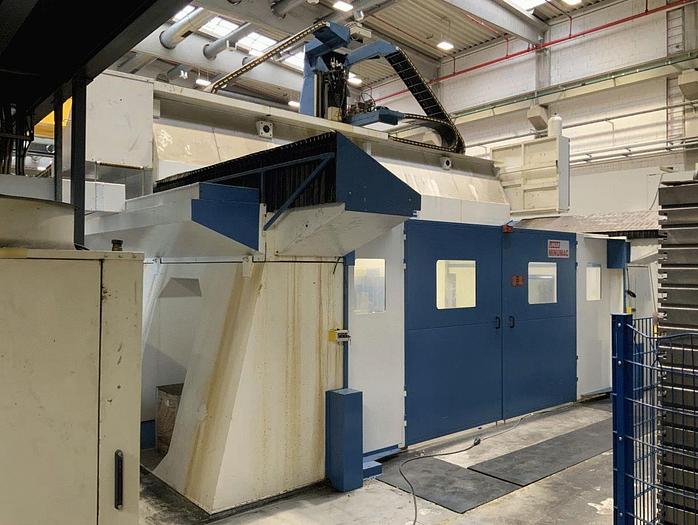

Full guarding

Chip conveyor

20 station tool magazine and automatic tool changer

Condition *Excellent* condition.

The 18000 rpm spindle was completely overhauled in 2019

The 30000 rpm spindle was only used for 6 weeks in 2019. It is like new.

The machine is extremely accurate

Our engineer has given this machine an *EXCELLENT * approval rating

FOR CUSTOMER WE CAN ORGANIZE TRANSPORT AS WELL

MACHINE WORKING IN ONE OF LEADER OF TOOL MANUFACTURE IN GERMANY
