ZAYER IXIOS G 1500
ZAYER IXIOS G 1500
Contact us for price
Spain
Description
DIMENSIONES DE TRABAJO / WORKING DIMENSIONS
Mesa giratoria
Rotary table
1.500 x 1.500
mm
Recorrido longitudinal
Longitudinal travel
3.000
mm
Recorrido transversal
Cross travel
1.600
mm
Recorrido vertical
Vertical travel
1.600
mm
CAPACIDAD DE EJES LINEALES / CAPACITY OF LINEAR AXIS
Avances de rápido
Rapid feed
hasta / up to 25.000
mm/min
Avances de trabajo
Working feed
hasta / up to 20.000
mm/min
Accionamientos / Drives:
. Eje longitudinal
. Longitudinal axis
Husillo a bolas / Ball screw
. Eje transversal y vertical
. Cross and vertical axis
Husillo a bolas / Ball screw
CONTROL NUMERICO / CNC

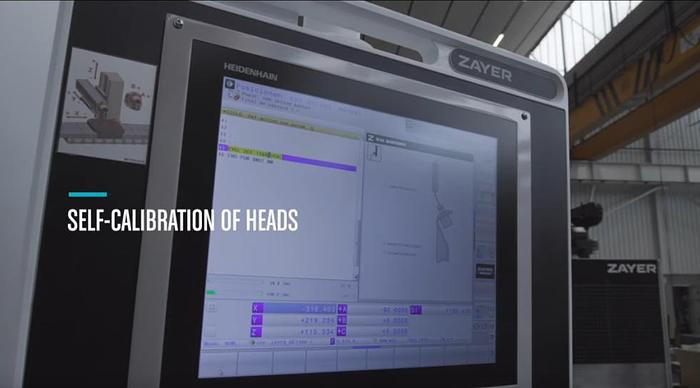

HEIDENHAIN TNC 640 + HR 510

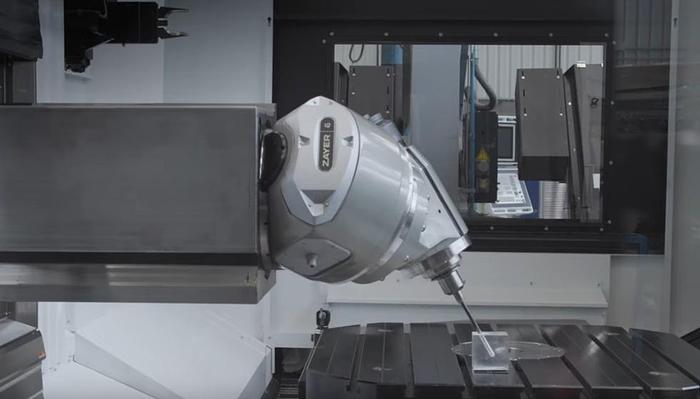

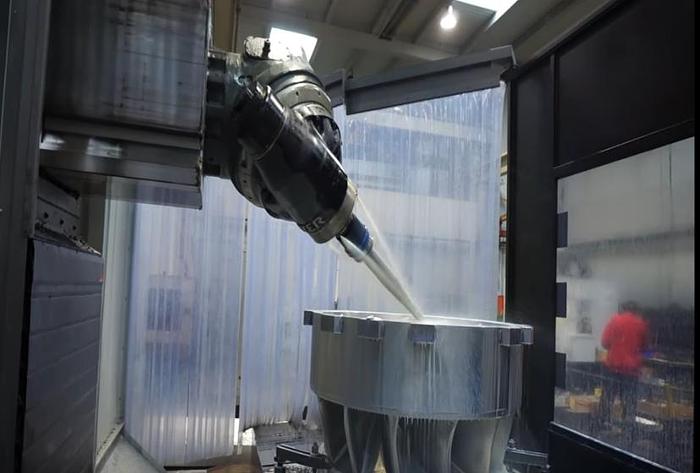

CABEZAL
HEAD
EQUIPAMIENTO
EQUIPMENT
45º, 360.000 posiciones (2500 Nm)
45º, 360.000 positions

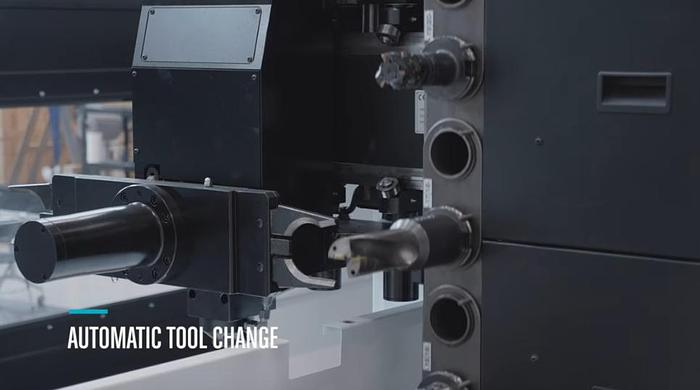

Almacén de herramientas 40
Tool magazine
Potencia 40 kW
Power
Equipo refrigeración 22 + 5 bar, 1000 l
Coolant equipment
Velocidad de giro del cabezal 4500 rpm
Speed of the spindle head
2 Extractores de virutas de cuello cisne
2 Goose neck chip conveyors
Cono de la herramienta MAS 403 BT 50
Tool taper

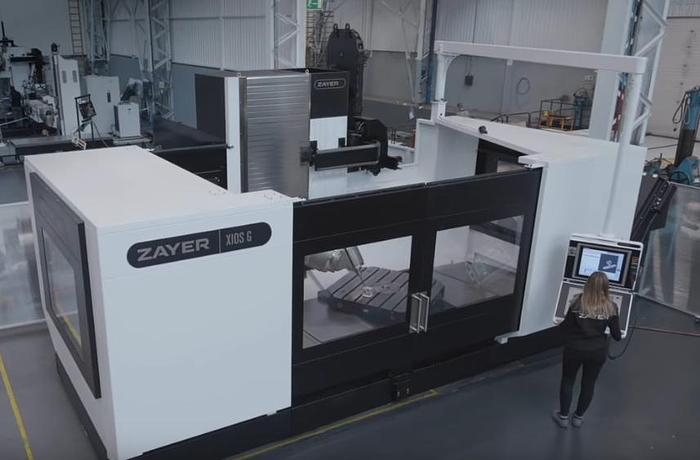

Protecciones carenado completo sin techo
Protections complete enclosure open on top
APPs: Center Table
Dynamic Selection

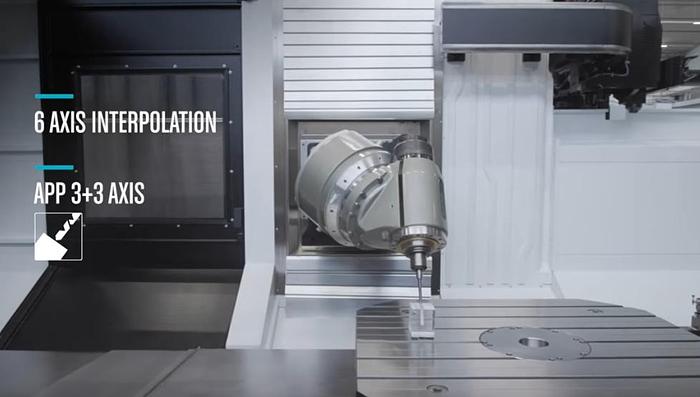

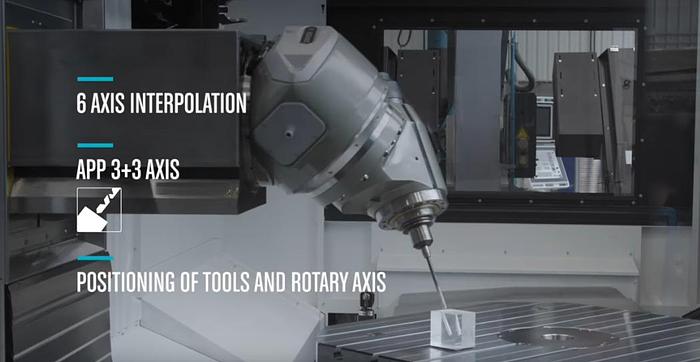

Virtual Tool Orientation
ZAYER REMOTE SERVICE
FOR CLIENT W EORGANIZE TRANSPORT, START UP MACHINE AND TRAINING
Specifications
Manufacturer | ZAYER |
Model | IXIOS G 1500 |
Year | 2023 |
Condition | New |
