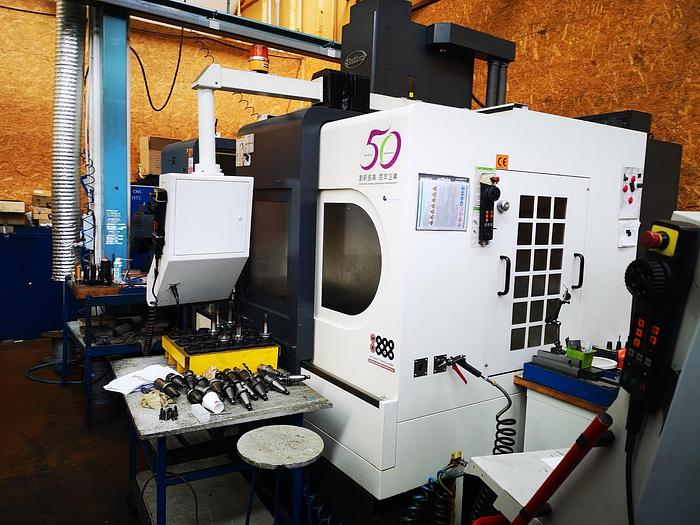

HARDFORD MVP 13

HARTFORD MVP 13

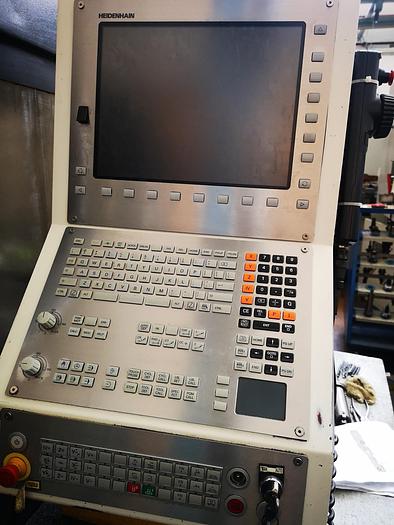

CONTROL HEIDENHAIN iTNC530

VERTICAL MACHINING

MVP-13AD + HEIDENHAIN iTNC530

MAIN SPINDLE : DIRECT DRIVE

- TOOL: ISO 40

- MAIN motor: 15.000 RPM, 13KW

- TRAVELS:

X: 1300 mm

Y: 700 mm

Z: 650 mm

- MAX DISTANCE SPINDEL AND TABLE : max 770 mm

- WORKING FEED : 1 – 12.000 mm/min

- EMPTY BACK FEED : 24.000 mm/min

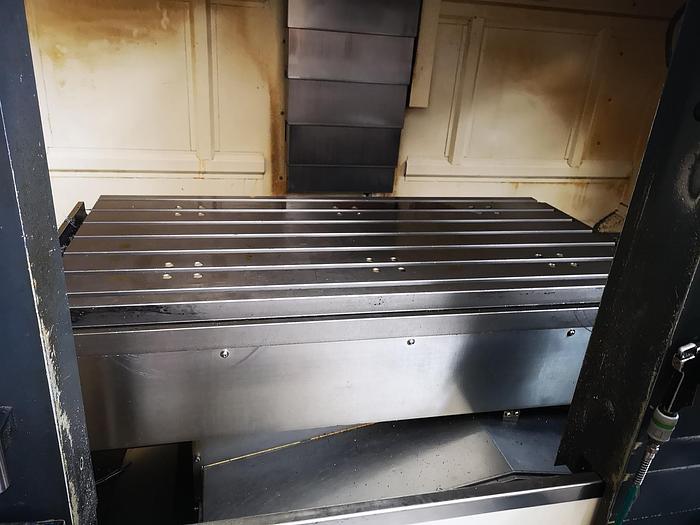

- TABLE : 1300 X 700 mm

- MAX LOAD :1.500 kg

- WEIGHT OF MACHINE : 9.600 kg

-

EQUIPMENT OF MACHINE

- COOLING TROUGH SPINDLE

- OILL MIST SEPERATOR

- PRETENSPION OF SPINDLE

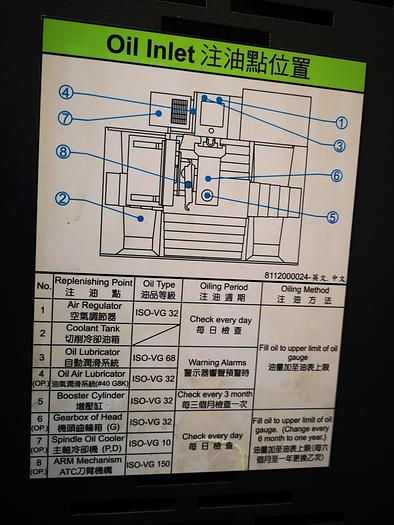

• CENTRAIL OIL FEED FOR SPINDLE OIL

- AIR TROUGH SPINDLE COOLING

- AUTOMATIC SHUT DOWN

- WORKING LIGHT

- RS-232 interface

- AIR GUN FOR AIR CLEANING

+ CE

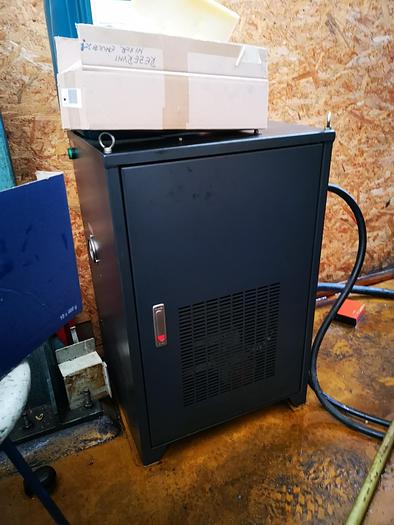

+ OIL COLING SPINDLE

+ HEIDENHAINHAND TASTER MPG HR 40

+ HEIDENHAIN 3 AXIS MEASURMENT

+ CONNECTION WITH PC COMPUTER –

+ ELECTRIC CABLE TNC software

+ COOLING TROUG SPINDLE 20 bar

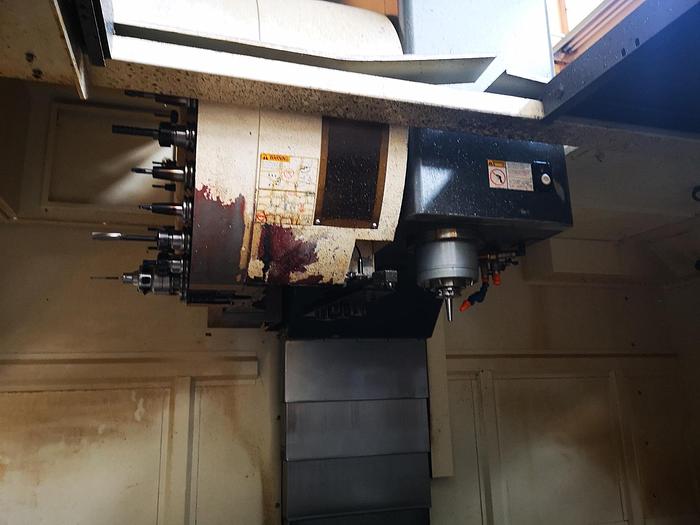

+ VERTICALE TOOL CHANGER WITH ( 24 ATC)

+ OPTION 2 HEIDENHAIN SOFTWARE – FAST READING

+ RENISHAW LASER MEASURMENT TOOLING NC4 F115

+ STAINLESS STEEL COVERS

+ HEIDENHAIN RENISHAV TYPE : TS640

+ ETHERNET

+ EXTRA LIGHT

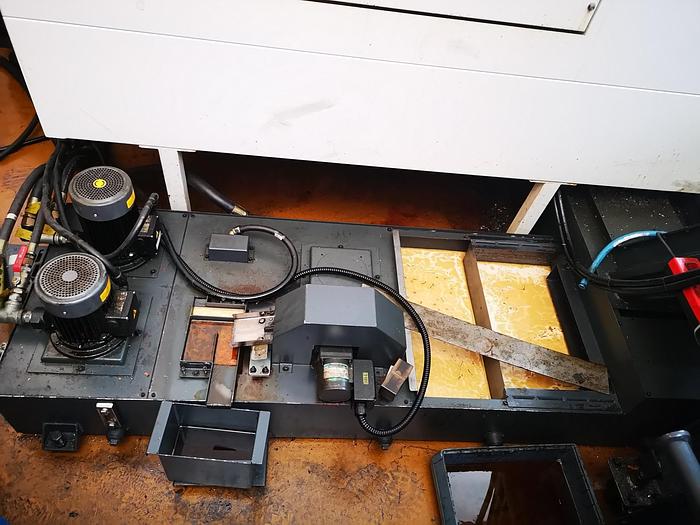

+ OIL CLEANING FILTER

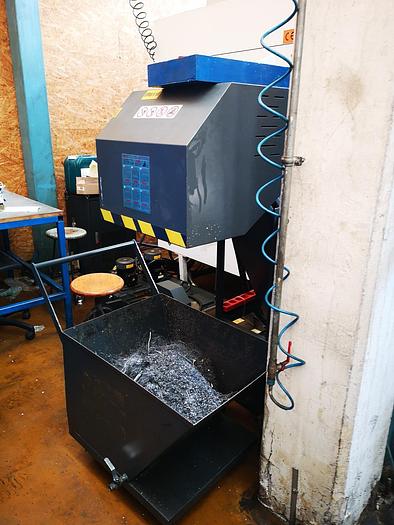

+ SPLASH SYTEM FOR CLEANING WASTE

IN A GOOD WORKING CONDITION READY TO WORK

MACHINE COMES WITH COMPLETE TOOLS IMEDIATELY AWAILIBLE

VIDEO OF MACHNE AWAILIBLE

FOR CUSTOMER WE AS WELL CAN ORGANIZE DISMANTLING LOADING AND TRANSPORT
