HERMLE 5 AXIS TOOL MILLING C40U

WE OFFER AN NICE CONDITION HERMLE C40U WITH NEW SPINDEL IN 2018

       DESCRIPTION

Selling used Hermle C40U Dynamic built in 2008 with a Heidenhain iTNC530 control.

Spindle was renewed in 2018!

Travels:

X-850mm

Y-700mm

Z-500mm

A- +91degrees -139degrees

C-360degrees

Equipment:

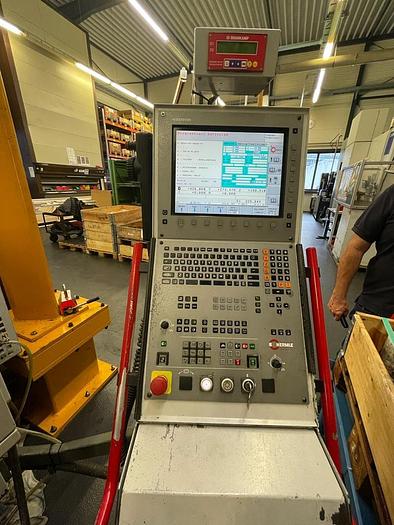

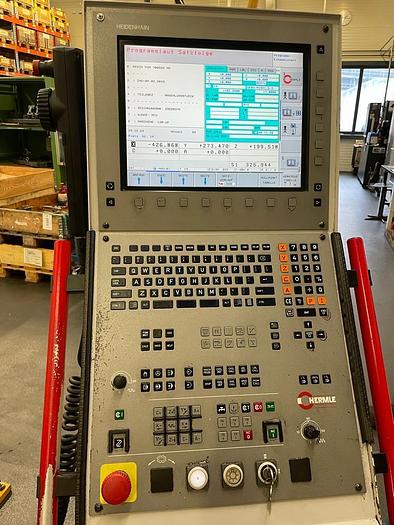

Control Heidenhain iTNC530

Tool changer: 38 positions

Internal coolant supply (IKZ) 80bar with paper belt filter

Scraper belt chip conveyor

Automatic cabin door

Laminated glass safety window

Blum tool breakage monitoring

Kinematic software option

Blowing air through spindle center

3D measuring probe

Spindle speed: 10000 rpm

Spindle holder: SK40

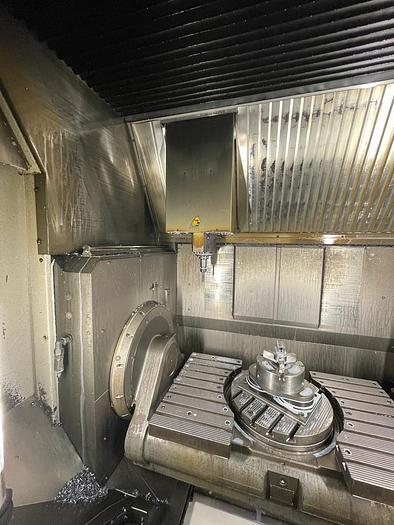

NC swivel rotary table Diameter: 420mm

A-axis off-center

Max. table load: 600kg

Linear axes dynamic version

Blow-off device

Sealing air for scales

Manual cab roof

Electric handwheel

Electric heat compensation

BRANKAMP spindle monitoring

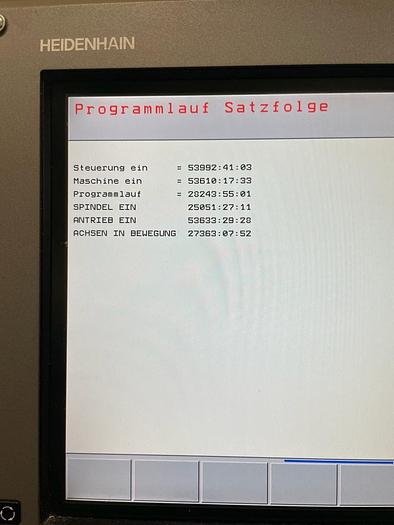

Total spindle hours: approx. 25100h

Machine is available immediately!

Transport can be organized on request!

Machine can be inspected by prior appointment!

MACHINE WILL BE AWAILIBLE TO TOOK FROM PRODUCTION IN NEXT WEEKS

FOR CLIENT WE ORGANIZE ALSO TRANSPORT
