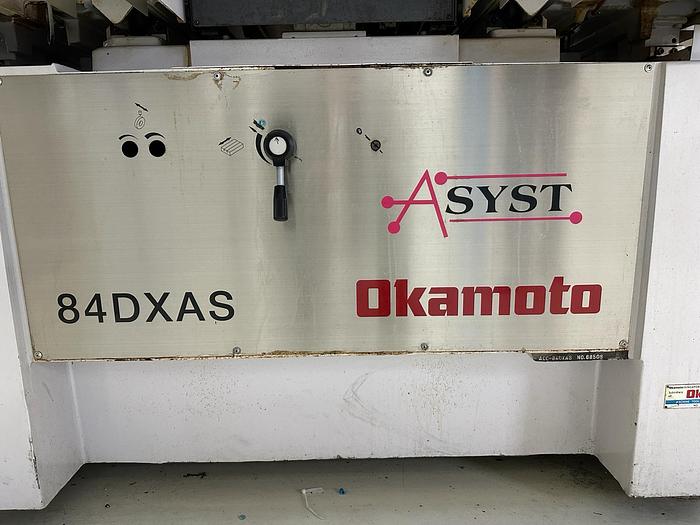

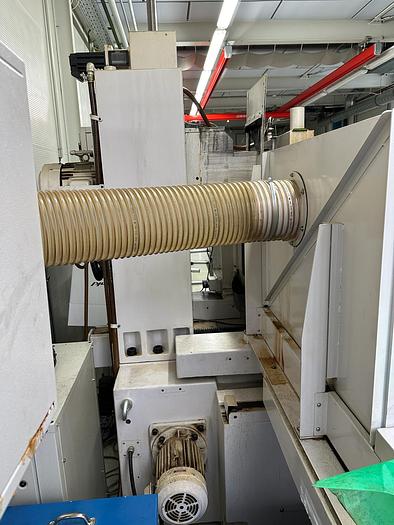

CNC OKAMOTO 84 D XAS

Working range:

X-axis (longitudinal): 800 mm

Y-axis (transverse): 400 mm

Z-axis (vertical): 440 mm

Table clamping surface: 800 x 400 mm

Table load max: 700 kg

Sanding head:

Grinding wheel diameter: 400 mm

Drive power: 4 KW

Dimensions / weight / transport dimensions:

4500x2300x2800 mm Machine

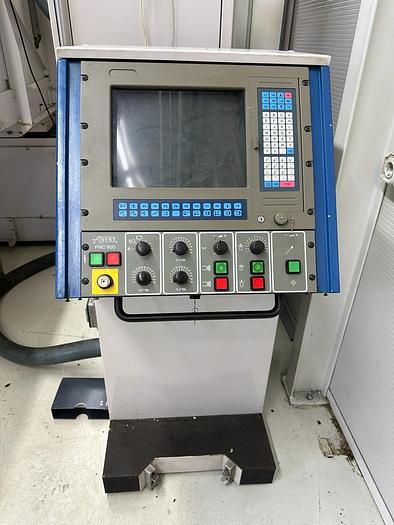

850x650x1400 mm Control panel

1600x650x900 mm Extraction unit

750x580x1000 mm Cooler

1800x900x750 mm Belt filter with pump

1050x650x2100 mm Switch cabinet

1200x800x400mm Grinding wheels+electrical diagram+operating instructions+stand

Weight: 3.700 kg

Further equipment:

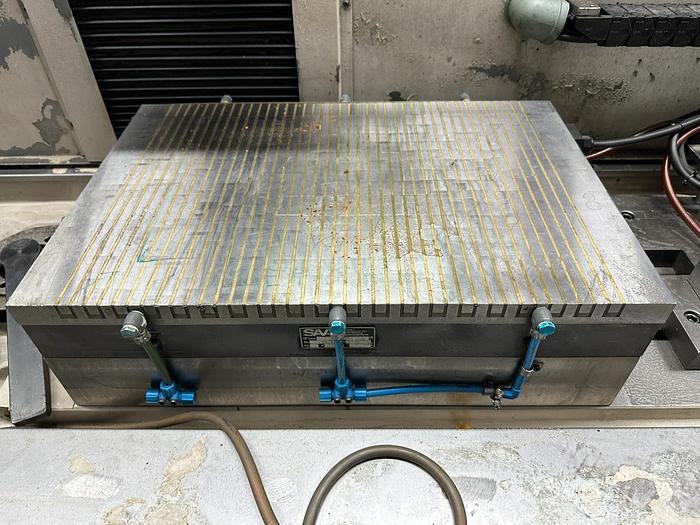

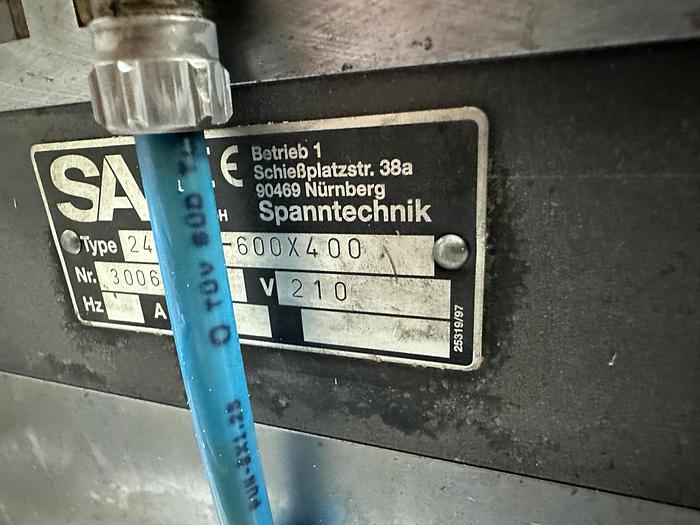

' Magnetic clamping plate SAV 600 x 400 mm

' Coolant system with belt filter system

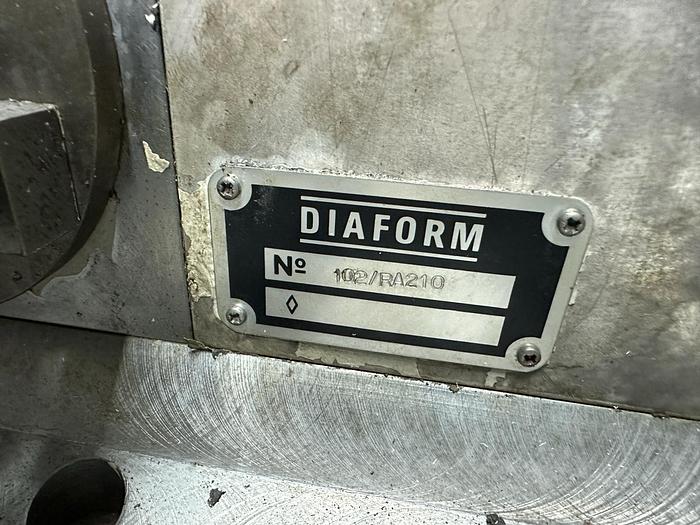

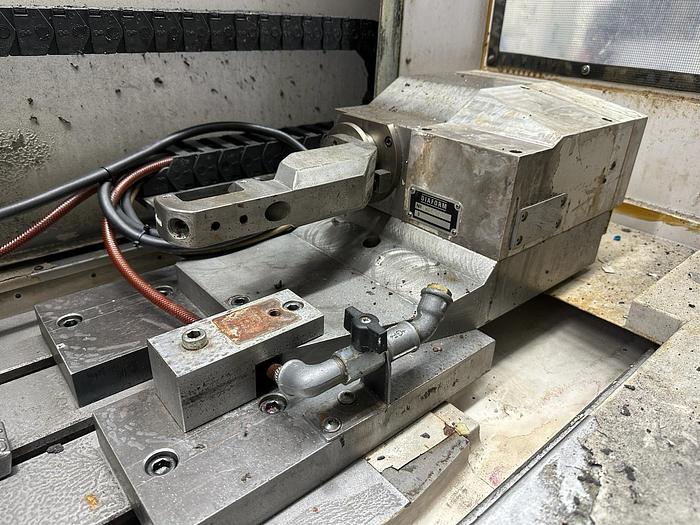

' Diaform unit type 102/RA210

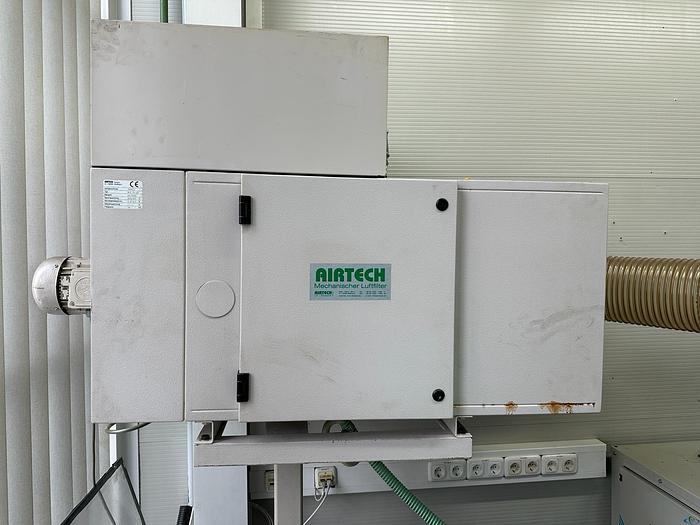

' Airtech MFE20-SP extraction system

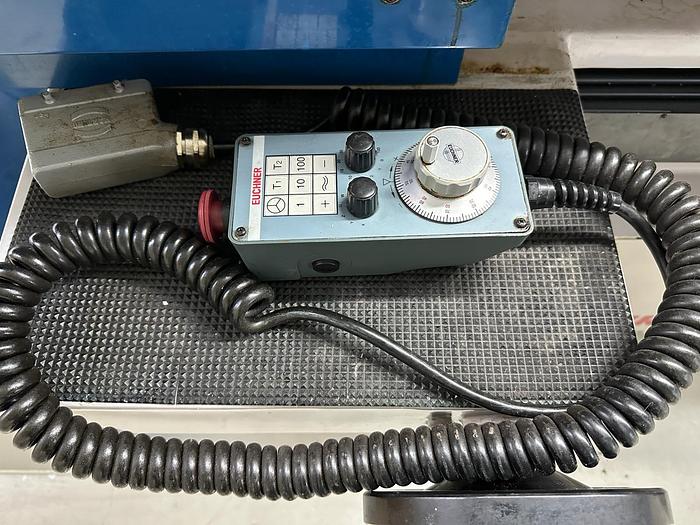

' Hand wheel

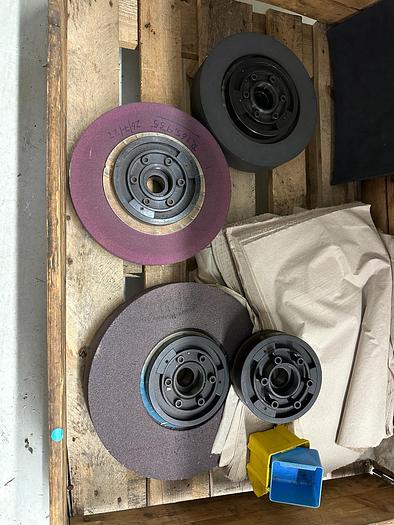

' Various grinding wheels / flanges
