CNC AUTOMATIC LATHE

WE OFFER AN NICE WORKING CONDITION AUTOMATIC LATHE WITH BAR FEEDER AND COMPLETE TOOLINGS

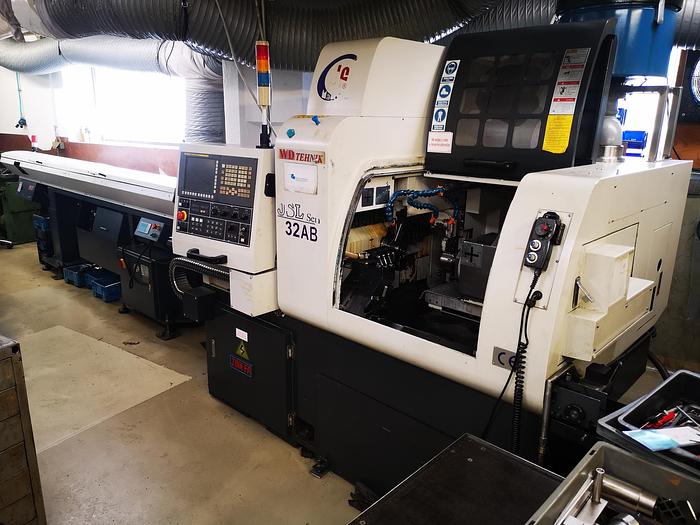

MACHINE IS WORKING DAILY WORK IN THE PRODUCTION

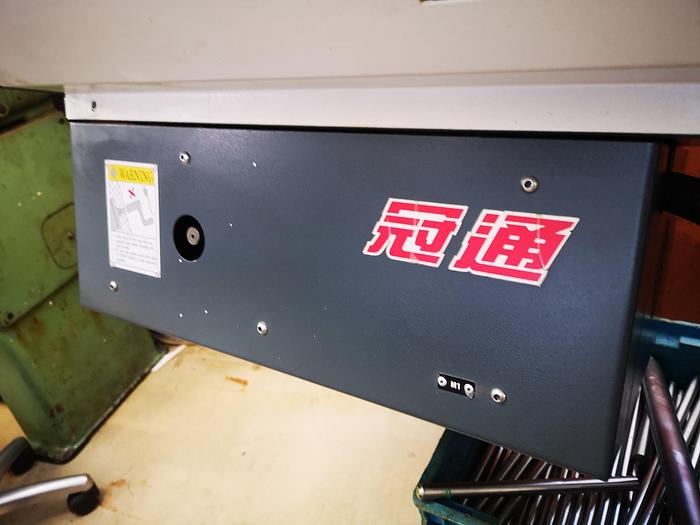

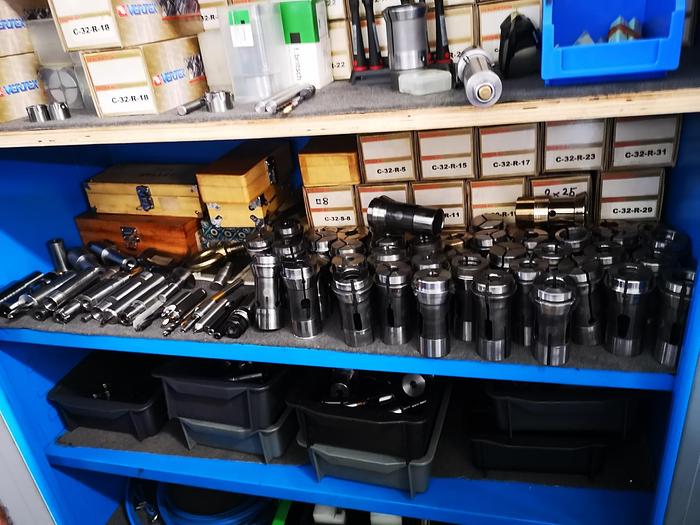

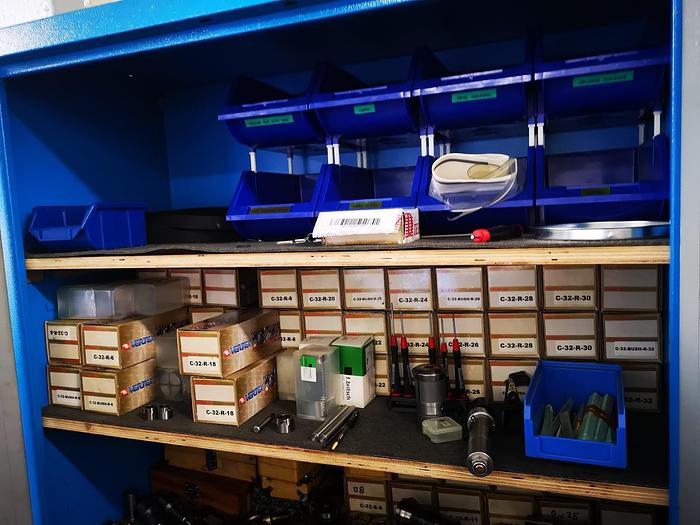

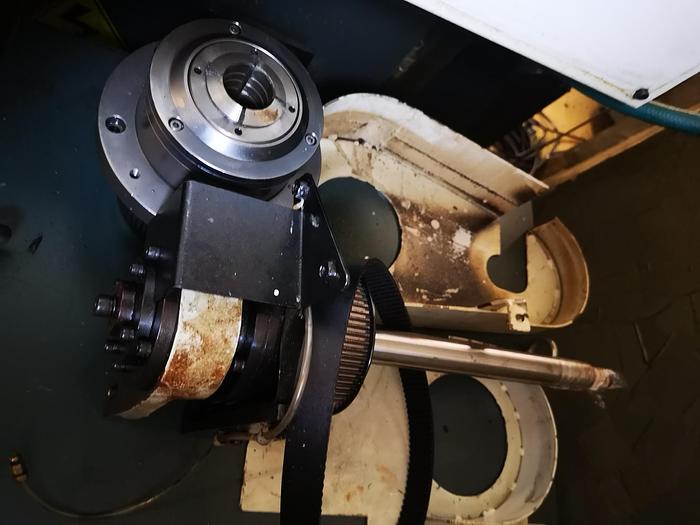

MACHINE IS INCLUDED WITH COMPLETE TOOLINGS FROM THE PHOTOS

TECHNICAL DATA:

BASIC DIMENSIONS Max turning diameter of main spindle mm Ø32

Max turning diameter of auxiliary spindle mm Ø32

Max drilling diameter of main spindle mm Ø13

Max drilling diameter of auxiliary spindle mm Ø13

Thread cutting - main spindle M10

Thread cutting - auxiliary spindle M10

Max diameter of driven tool mm 10

Max side thread cutting M8

Max turning length mm 220

Number of controlled axes 9

SPIN Speed of spindle rotation o/min 200 - 7000

Bore through spindle mm Ø45

TOOLS Number of holders for turning knives piece 6

Number of holders for drill holes pcs 5

Dimensions of tools mm Dimensions of tools

Number of holders for side drilling pcs 5

Holders - face drilling - spindle aid piece 4

Quick feeds on X-axis m/min 18

Z-axis rapid feeds m/min 18

DRIVE ENGINES Main spindle drive motor kW 7.5

Auxiliary spindle drive motor kW 7.5

X1- / Z1-axis servo motors kW 1.4/1.4

Servo motor per Y-axis kW 0,75

Servo motors on X2- / Z2 -axis kW 0.75/0.75

Side drilling system motor kW 1.4

Main drilling system motor kW 0,75

Cooling pump motor kW 0,375

ACCURACY Positioning accuracy mm ±0,005

Repetition accuracy mm ±0,002

OTHER DATA Machine dimensions (W x D x H) mm 2270 x 1450 x 1835

Machine weight kg 3100

BASIC MACHINE EQUIPMENT AND OPTIONAL MACHINE EQUIPMENT COMPLETE INCLUDED

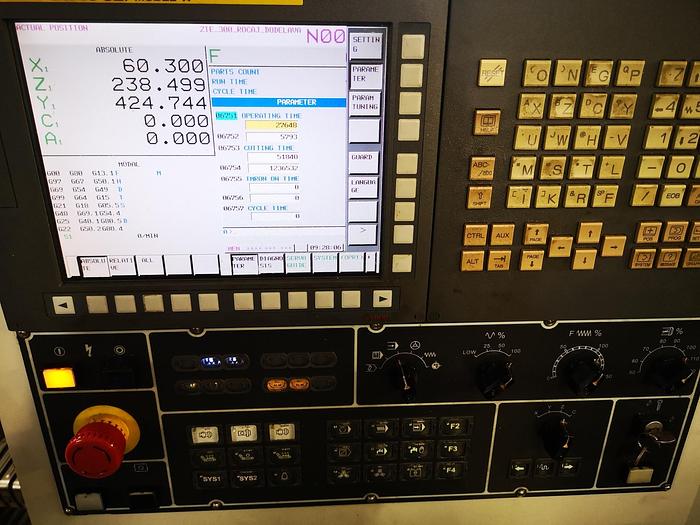

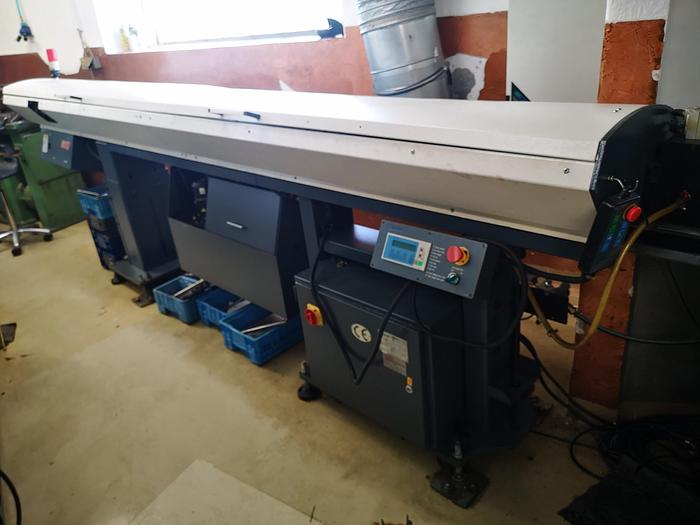

FANUC 32i Controller Automatic bar feeder SN-542 3200 mm

Colour LCD display Clamping bushings for main and auxiliary spindle and introductory bushings

Driven tool holders Driven tool holders

Eccentric tool holder for drilling and milling Automatic door opening/closing

Clamping sleeve for moving tools Oil mist collector

ER16 Clamping Clamp Set Electrical Voltage Stabiliser

Tool holders for face machining on auxiliary spindle

Tool holders for side drilling

Machine cooling system with reservoir

Workpiece catcher

Workpiece conveyor

Double C-axis

Automatic lubrication system

Signalling light for programme completion

Transformer 20 kW

Fully protected working area with cab

Work lamp

Levelling screws and shims

Tool case with tool accessories

Operating books

CE norms
