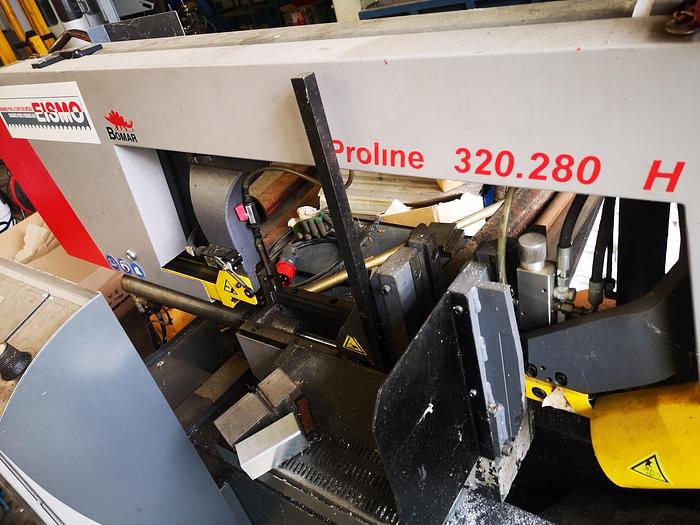

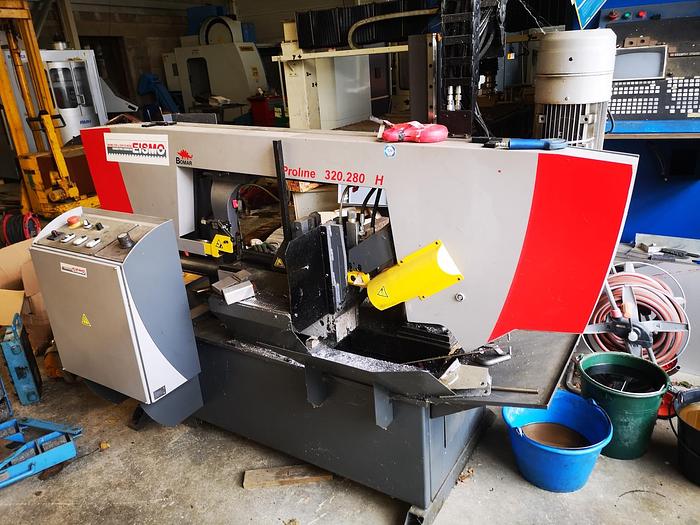

BANDSAW BOMAR PROLINE 320.280

AS NEW CONDITION WORKS IN PRIVATE WORKSHOP FROM NEW.

Working mode: Semiautomatic

Machine type: Horizontal bandsaw

Cut: Straight cut

Mitre cuts range: 0°

Drive:  4 kW, 3x400 V/50 Hz

Saw band speed: 20 - 120 m/min.

Saw band dimensions:  4 580 x 34 x 1,1 mm

Material loading height:  780 mm

Length:  2 172 mm

Width:  1 197 mm

Height:  1 771 mm

Weight:  800 kg

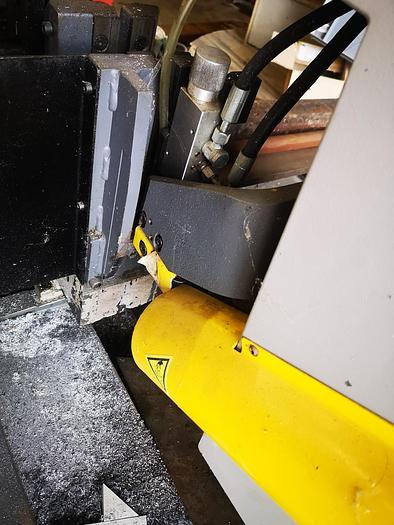

This universal semiautomatic bandsaw of a double-column construction, designed for perpendicular cuts of materials up to 280 mm in diameter, provides high quality at an affordable price. The saw arm is guided by two robust columns and laid on preloaded, no-clearance linear guiding on one side and on auxiliary guiding on the other side. The excellent cutting performance results from these features: a three-sided hardmetal precision guide of the 34 mm high saw band and synchronous running brush for chips removal. Material clamping is performed by a full-stroke sectional vice. The material feed is manual.

The cut material outlet is fitted with a slide. The saw band drive is equipped with a frequency convertor that allows the band’s optimal speed to be set against the processed material within the 20-120 m/min range; this significantly increases both the saw band lifetime and the machine productivity. Further, the band is tilted against the vice load surface at 2° angle, which also significantly reduces cutting times and contributes to a longer band lifetime. Thanks to their arms rigidity, double-column bandsaws with a fixed arm position achieve much shorter cutting times (especially in cutting full materials) than machines with articulated saw arms.

Key features

• Both-sided linear guiding of the saw arm
• Arm laid on linear guiding
• Automatic downfeed pressure regulation
• Simple and clearly arranged control
