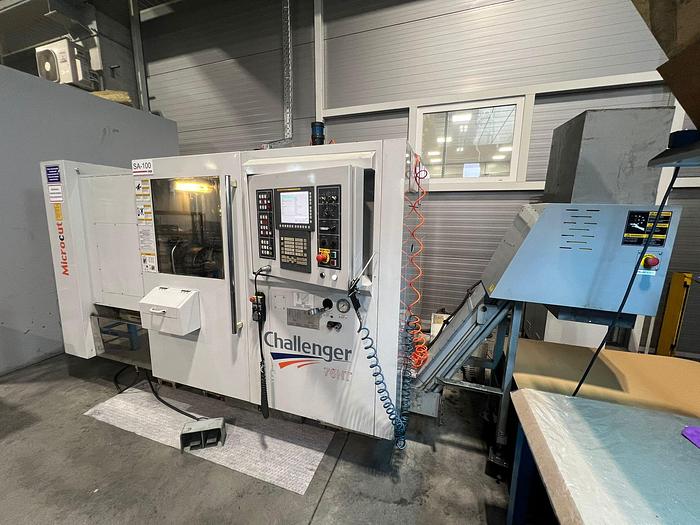

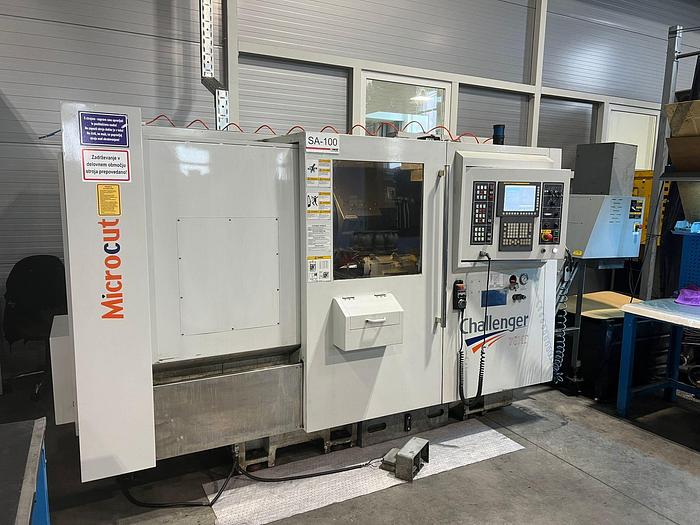

CNC TURNING AND MILLING LATHE CHALLENGER MICROCUT 76 HT

WE OFFER AN VERY NICE CONDITION CNC LATHE TURNING AMD MILLING

CHALLENGER HT75

MACHINE WILL COMES WITH COMPLETE TOOLS ACCESSORIESS

76HT/HTL

Machining from small to large workpieces, turning to Y-axis machining are the basic features of the HT series. These machines can be equipped with all the desired options for high-precision production. We offer turning lengths of 750 mm and 1250 mm. Spindle bore of 76 mm with a very powerful spindle motor of 18.5 kW, maximum torque of 907 Nm (22 kW with torque of 1,078 Nm available on request.on request).

Swing over bedmm600

Max.cutting dia. (with turret)mm580

Max. cutting length (with turret)mm750/1250

X axis travelmm305

Z axis travelmm750/1250

Slant bed degreedegree45

Spindle speedrpm3000

Bar capacitymm76

Chuck sizemm/inch250 (10")

Spindle main power - std. (opt.) -

FanuckW15/18.5 (18.5/22)

Rapid traverse (X & Z)m/min.24/24

X / Z axis servo motor - FanuckW3/4

Machine weightkg5700/7200

STANDARD ACCESSORIES:

• Fagor or Fanuc controller

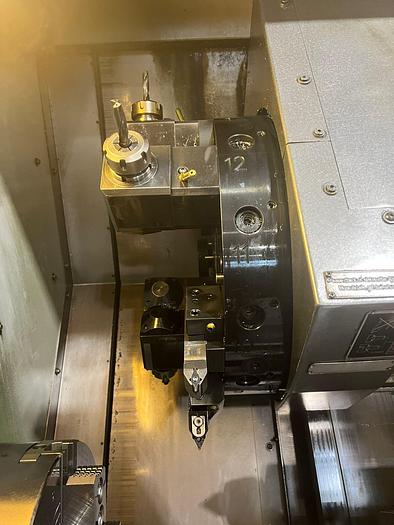

• 8 position hydraulic turret, regular type top plate without tool holders

• Hydraulic 3-jaw chuck with hard jaw & soft jaw

• High pressure cooling system

• Auto lubrication system

• Work lamp

• Hydraulic unit

• Programmable tailstock

• Fully enclosed splash guard with interlock safety device

• Auto lock/unlock door

• Tool set & box, level pads

• CE norms
