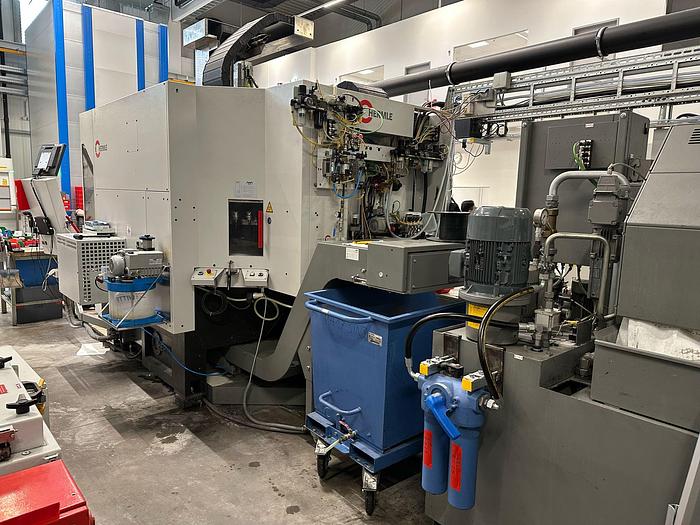

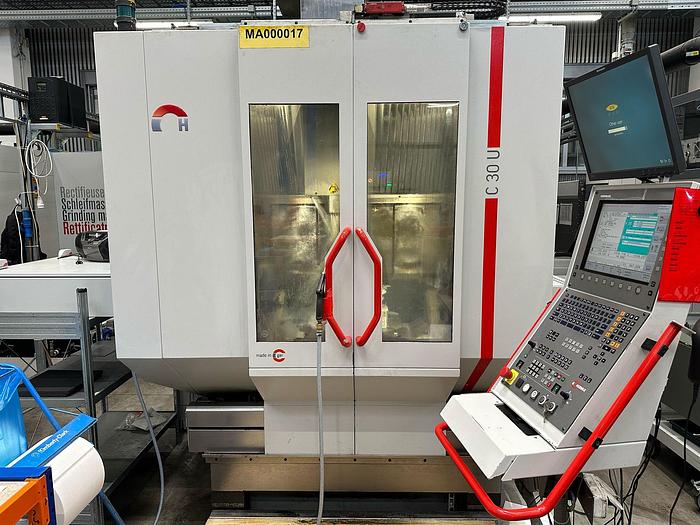

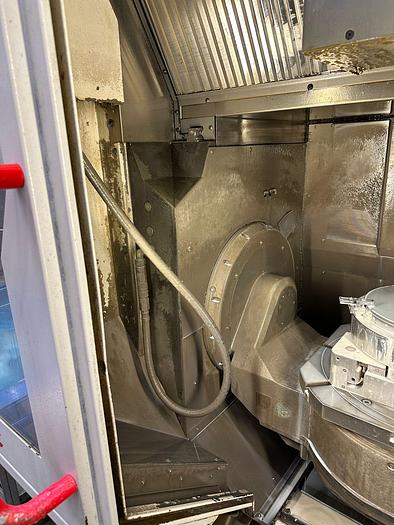

HERMLE C30U -5AXIS SIMULTANIUS WITH COMPLETE TOOLINGS - NEW SPINDLE 2023

WE OFFER AN WONDERFULL CONDITION a Hermle C30U 5-axis simultaneous machining center!

Built in 2011 with a Heidenhain iTNC530 control!

MACHINE GOT NEW SPINDEL IN 2023 -COMPLETE SPINDEL WITHH MOTOR.

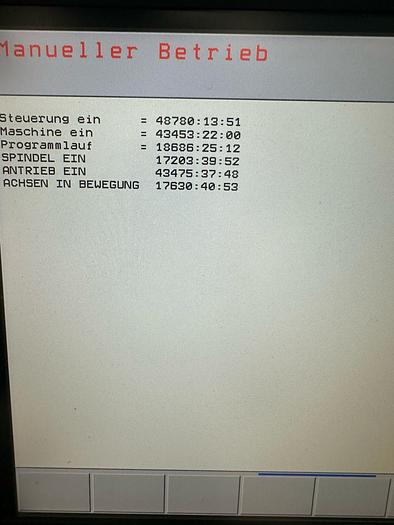

SPINDEL HOURS: 17300 HOURS , MACHINE IS WORKING INSIDE PRODUCTION AND CAN BE INSPECTED.

       TECHNICAL DETAILS

Travel distance X-axis:

650 mm

Travel distance Y-axis:

600 mm

Travel distance Z-axis:

500 mm

Spindle speed (max.):

18,000 rpm

Table width:

630 mm

Table length:

630 mm

Table load:

1,000 kg

Overall weight:

9,500 kg

Equipment:

rotational speed infinitely variable

Travels:

X: 650mm

Y: 600mm

Z: 500mm

Swivel range A: +30/-115 degrees

Rotation range C: 360 degrees

Equipment:

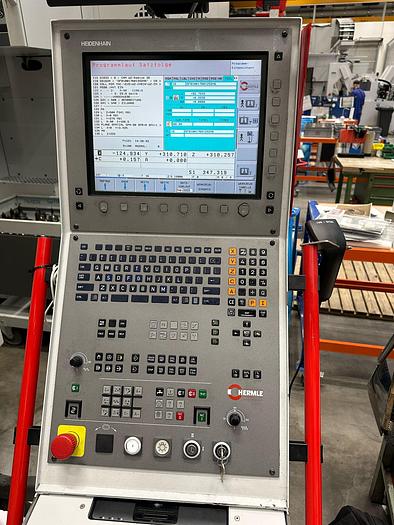

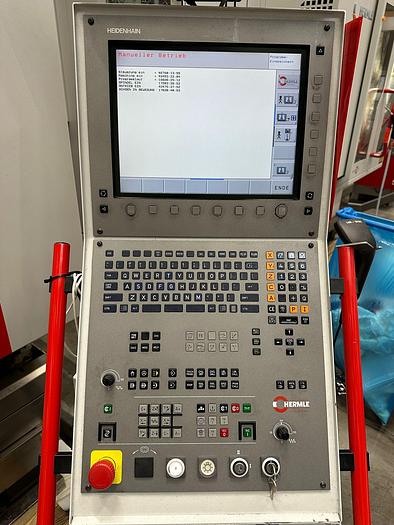

Control: Heidenhain iTNC530

Spindle speed: 18,000 rpm

Spindle mount: HSK-A63

Tool changer: 32 positions

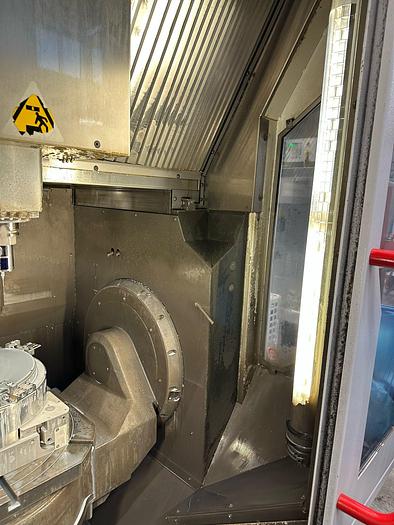

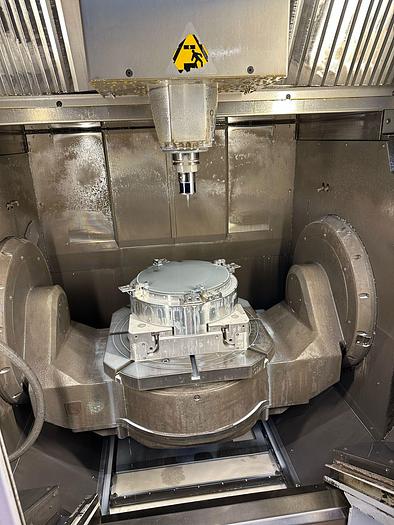

NC swivel rotary table: 630mm diameter

A-axis off-center

6-position rotary feedthrough

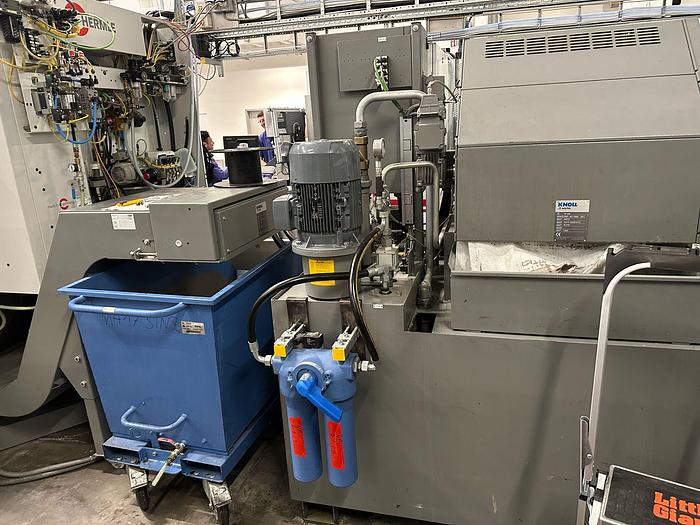

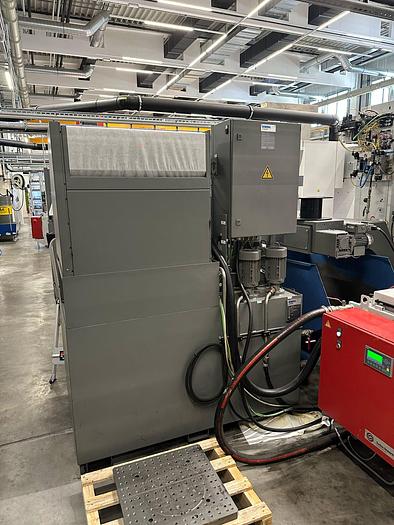

80 bar internal coolant with paper belt filter (Vario valve)

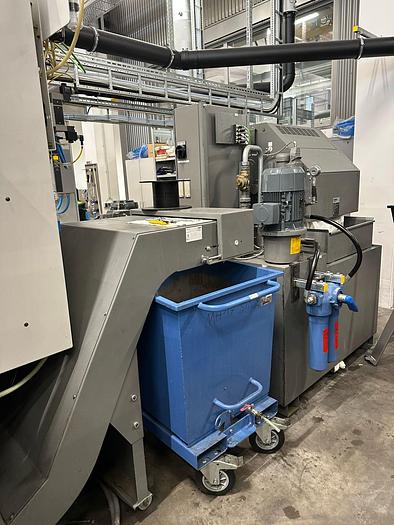

Scraper belt conveyor

Manual cabin door

Manual cabin roof

Safety screens

Blum A2 tool measurement and breakage detection

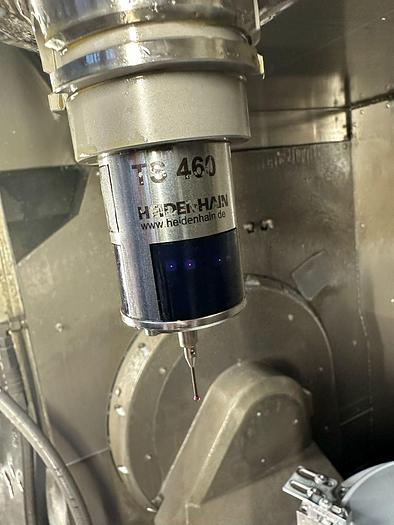

Heidenhain measuring probe

Electrical heat compensation

Chip flushing gun

Bed flushing

Air seal for scales

Status light

Pneumatic extension Release/reclamp

M-functions

NC stop on external signal

etc.

Accessories: approx. 30 HSK-A63 tool holders

Heidenhain measuring probe

Machine feet

Complete documentation
